Conveyor System Design: Key Considerations to Know

A well-designed conveyor system is essential to just about any industry that relies on moving large volumes of materials. Be it for mining, manufacturing, or construction, the right design can increase output, reduce downtime, and make your operations safer and more cost-efficient.

While engineers may handle the technical design, it’s just as important for business owners, project managers, and decision-makers to understand the factors behind an effective conveyor system design. After all, the right system can improve ROI, while the wrong one can lead to inefficiencies or unexpected breakdowns.

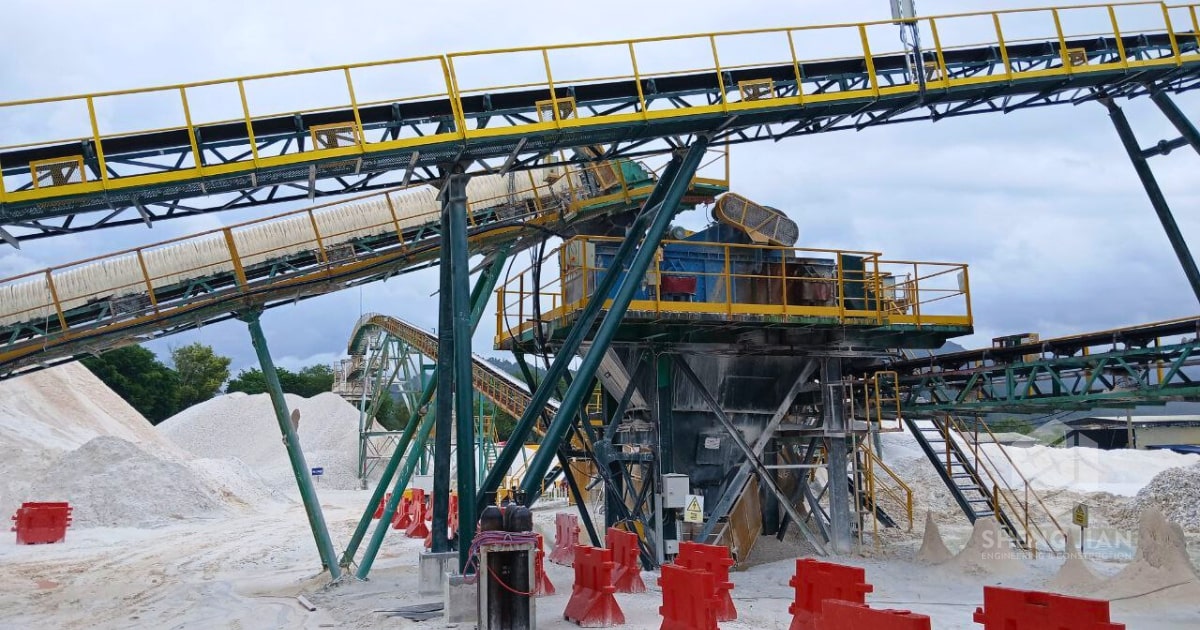

A proper conveyor system design is important for ensuring efficient movement and handling of materials.

Let’s get into what you should consider when investing in an industrial conveyor system for bulk material handling.

Key considerations for conveyor system design

1. Understand your material

Before anything else, know the type of bulk material your system will be handling. The size, weight, shape, and abrasiveness of your material will directly affect the type of conveyor system you need and its design.

• Fine, powdery materials (e.g., cement or flour) may require enclosed screw conveyors to reduce dust and leakage.
• Coarse or sharp materials (e.g., gravel, coal) need belts that can withstand abrasion.
• Sticky or wet materials may demand specific scraper mechanisms or slower belt speeds to prevent buildup.

Depending on bulk density, moisture content, and flowability, your conveyor design will have to feature different belt widths, incline angles, or trough depths to move a given material.

2. Match conveyor type to your needs

Different conveyors are well-suited to different materials. Your conveyor’s design must align with how your materials behave and how your operations are structured.

• Belt conveyors: Ideal for long distances and consistent material flow.
• Screw conveyors: Great for handling semi-solid materials or conveying at an incline.
• Bucket elevators: Suited for vertical transport of granular or powdered materials.

Each type of industrial conveyor system has its respective strengths and limitations. Choosing the right type affects not just performance but also ease of maintenance and total system lifespan.

3. Prioritise system layout and footprint

Once you know your materials and conveyor type, the next step is mapping out the physical path of the system. This includes accounting for start and end points, changes in elevation, transfer zones, and available space on-site.

A streamlined layout reduces energy consumption, limits material spillage, and improves system accessibility. Overcomplicated paths or poorly placed chutes can lead to bottlenecks or excessive wear.

Also consider future expansion: Can your conveyor system design scale as your facility grows?

4. Consider the operating environment

Where your conveyor system operates is just as important as what it transports, as different conditions can exert wear and tear. Consider:
High humidity or rainfall? You’ll need corrosion-resistant materials and water management solutions.

Explosive dust conditions? ATEX or IECEx-rated components may be required.

Outdoor installations? Think about UV-resistant belts and weatherproof enclosures.
Each environment presents different design challenges, and failure to address them early could lead to downtime or compliance issues later on.

5. Ensure safety and maintenance are built in

A well-designed industrial conveyor system should be as safe as it is functional. Guard rails, emergency stops, and safe access zones are all critical to worker safety and handling.

Just as important is planning for maintenance. A good conveyor system design considers how easy it is to clean, inspect, and replace parts. Minimise hard-to-reach areas and make sure belt cleaning and tensioning systems are accessible.

Poor maintenance planning leads to frequent breakdowns, which translates to higher long-term costs.

6. Think long-term: Total cost of ownership

While upfront pricing often drives decisions, the cheapest system on paper might not be the most cost-effective in the long run.
Long-term durability, energy efficiency, maintenance requirements, and ease of part replacement should be taken into account from the start, as they all affect the total cost of ownership. Investing in a system with long-term reliability often saves more than cutting corners during procurement.

Choose a conveyor system partner that delivers long-term value

An efficient conveyor system can transform how both your materials and business move. But good outcomes start with good design decisions, and having a solid understanding of your materials, layout, safety, and future expansion plans goes a long way in creating a reliable system that’s worth the ROI.

With that, having a trusted partner like SJEC makes all the difference. From belt conveyors to screw conveyors and beyond, we design and deliver fully integrated conveyor systems in Malaysia that are tailored to your bulk material handling needs.

Ready to move materials smarter and more efficiently? Reach out to our team today to see how we can help.
